Oracle 12c installation on AWS EC2 Instance

Share via:

Oracle 12c installation on AWS  EC2 Instance

In this article we will come to know how to install Oracle Software on  AWS cloud.

I have an existing AWS Cloud account.


we can create a AWS account using below link

There I going to choose particular Region called N.California.

In order install Oracle software on AWS Cloud we need to create instance on AWS.

How to create Instance ?

After choosing Region

In Ec2 dashboard itself we have Launch Instance Option .

In Ec2 Dashboard we can see how many instances are running .

There are two availability zones N.California Region .They are -1b

Click on Launch Instance

After Clicking on Launch Instance will get totally Seven steps

Step :1

Need to choose which operating system need to install.

By default AWS have Amazon machine Images(AMI’s).

AMI are the templates that contains operating system software .

Step 2 :

Choose an Instance type

There are different types of Instances like t2.nano, t2.micro,t2.small,t2.medium etc..,,

need to choose how many CPU’s,Processor,Memory

Step 3 :

Configure Instance

Need to choose number of instances to be launched .

We can set in which availability zone instance to be created

Step 4:

Add Storage

we can multiple storage’s   by adding volumes

Step  5 :

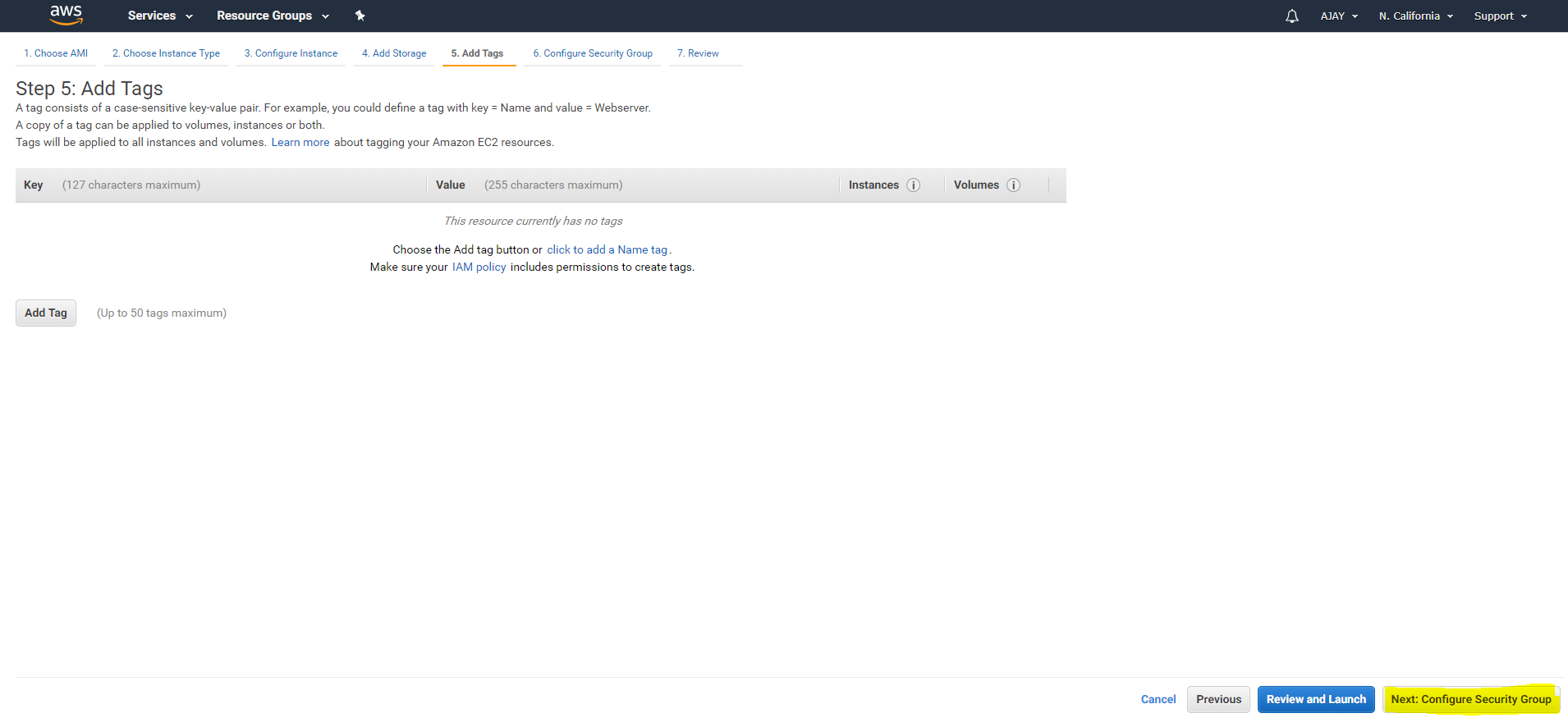

Add Tags

Step 6 :

Configure Security Group

Either we can create new security group with required connections  or we can add existing security group to new instance.

Step 7 :


Review our settings and click on Launch .

Once we clicked on Launch.  It asks to to create New key pair.

we have two options here

If we have existing key pair we can use existing or we can create new key pair.

Click on Create a new key pair and write key pair name and download it.

Once  we downloaded then click on  Launch Instance.

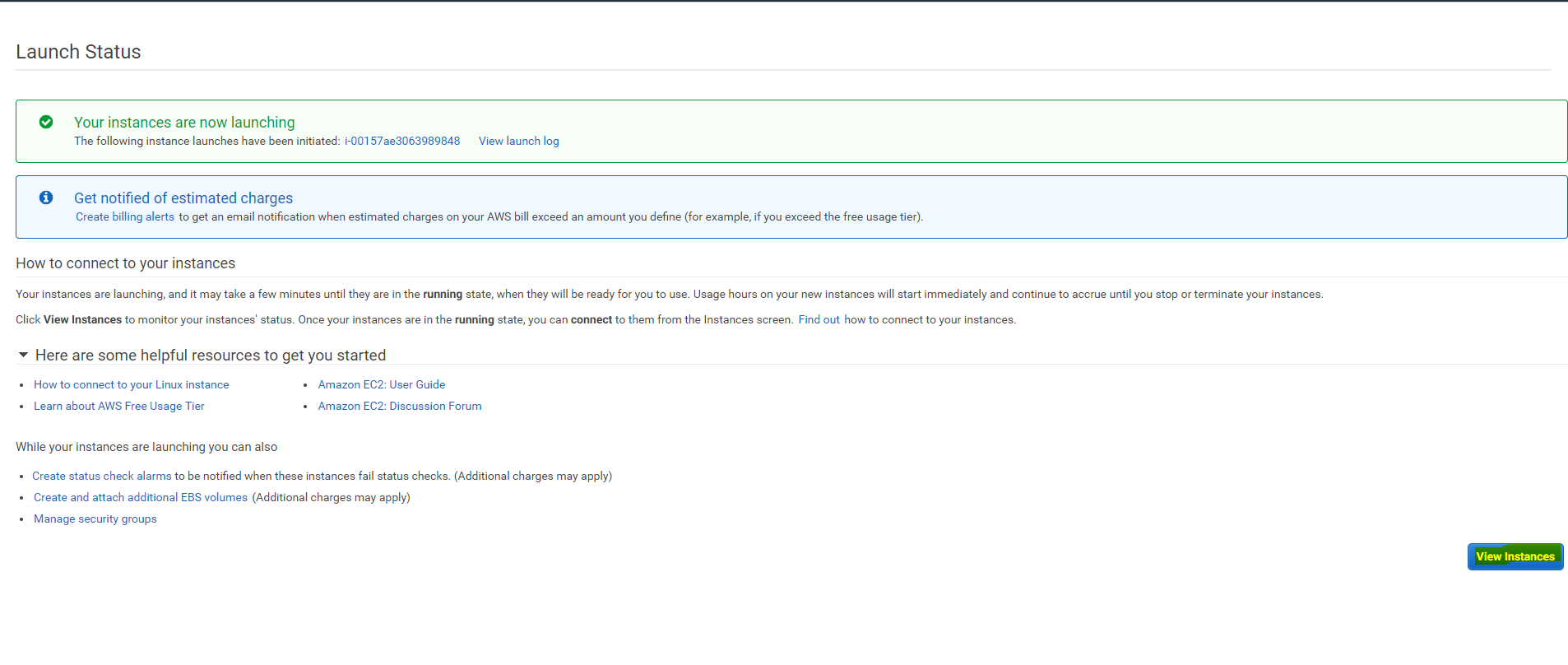

Once Instance launches  will get below page .

Click on View Instances

After clicking on View instances Console shows all the instances under N.California Region.

Get the Ip address and connect from Moba Xterm.


Open Moba Xterm and click on New session .

On SSH we need to write IP address username  and should load Private key(PPK) .

Click on OK.

Moba Xterm will open below window.

By default RHEL have one cloud user called ec2-user.

Whenever we launch an instance we should update operating system using yum -y update .

We  should create Required Groups and Users to install ORACLE SOFTWARE

Permission to Users and Groups.

How to Enable XHOST +   ?

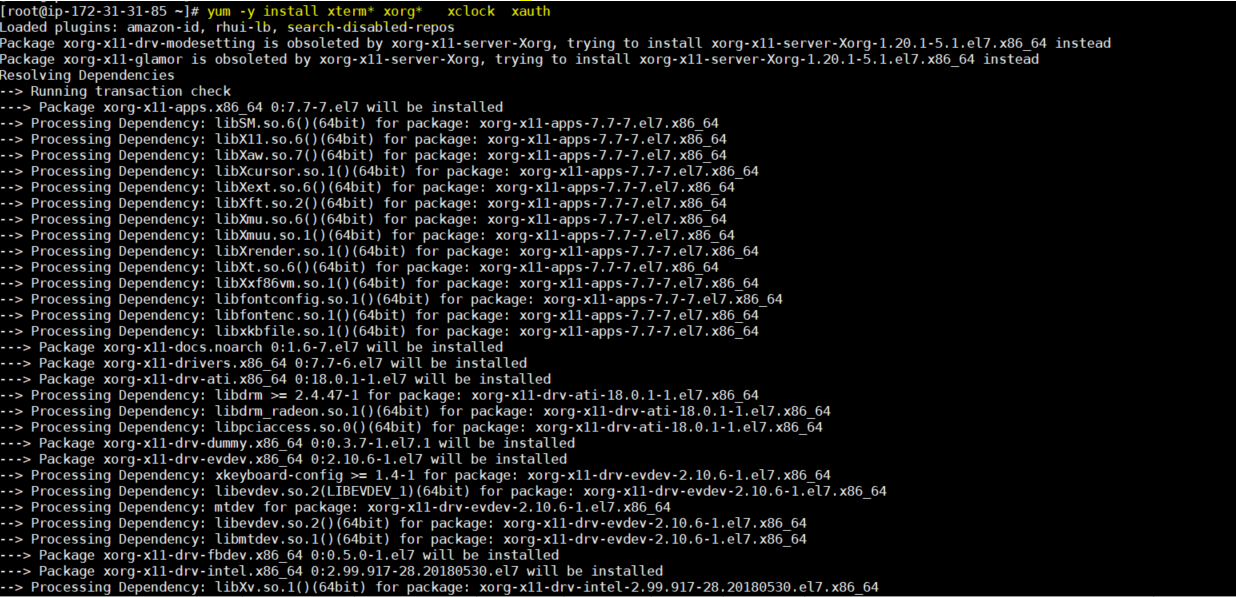

We should Required packages to open GUI MODE.


To Open files we are installing  vim

To Unzip files we are installing unzip

Need restart the instance and then give xclock .

Yes GUI Mode is working.

We need set Swap Memory using following steps

If you don’t have any additional disks, you can create a file somewhere on your filesystem, and use that file for swap space.

The following dd command example creates a swap file with the name “myswapfile” under /root directory with a size of 1024MB (1GB).

Change the permission of the swap file so that only root can access it.

Make this file as a swap file using mkswap command.

Enable the newly created swapfile.

To make this swap file available as a swap area even after the reboot, add the following line to the /etc/fstab file.

Verify whether the newly created swap area is available for your use.

Add /tmp

Note: In the output of swapon -s command, the Type column will say “file” if the swap space is created from a swap file.

If you don’t want to reboot to verify whether the system takes all the swap space mentioned in the /etc/fstab, you can do the following, which will disable and enable all the swap partition mentioned in the /etc/fstab.

Copying Oracle Software files into AWS instance

We can use Moba Xterm software to copy the files.

Using SFTP provide required credentials.

Once credentials success then MobaXterm will open following page .

From Below page we need to drag and drop the files.

Later connect to Oracle  user and run the file ./runInstaller which is under database directory .

Automatically Oracle software will come up with GUI MODE.

Step 1 :

Unclick on My Oracle Support

Step 2 :

Click on Create and configure database .

Step 3 :

Choose Desktop class

Step 4 :

Fill up required locations to store software binaries.

Provide Administrative privileges.

Step 5 :

No need to change in Inventory locations.

Step 6 :

Oracle processes minimum installation and configuration requirements.

Step 7 :

Few packages will show warning and not fixable.

Step 8 :

Install required packages

Step 9 :

Fix and check again

Step 10 :

Oracle prompts  a script and need to run as ROOT user.

Step 11 :

run as ROOT user

Step 12 :

Once script runs automatically all the warnings will get successful.

Step 12 :

Summary of installation

Click on install

Step 13 :

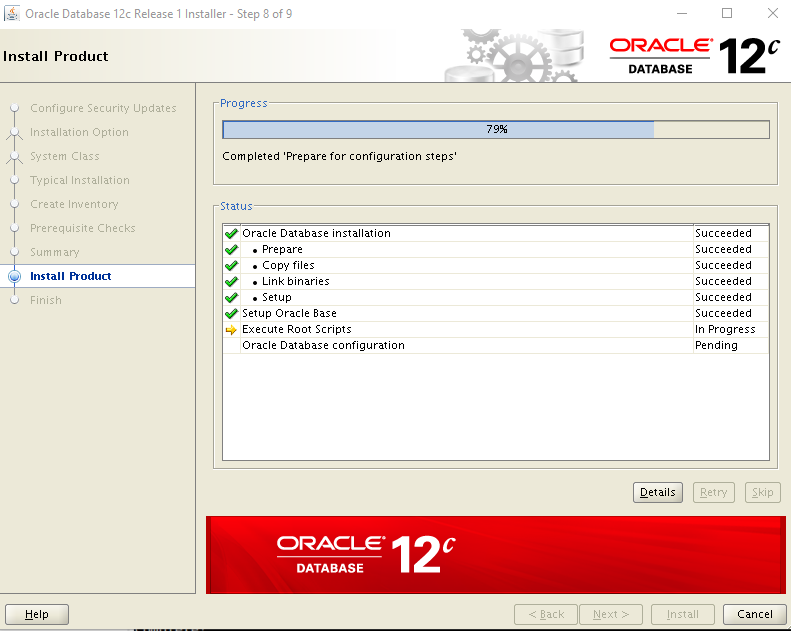

Oracle software installation in progress.

After reaching 79% Oracle prompts  two scripts and those scripts need to run as ROOT user .

Run as root user

Then installation will complete .


Share via:
Note: Please test scripts in Non Prod before trying in Production.
