Dear Readers,
In this article we will see IgnoreDelete and IgnoreUpdate parameters in Oracle GoldenGate.
This article covers Oracle GoldenGate IgnoreDelete and IgnoreUpdate parameters for Oracle GoldenGate
- IGNOREUPDATES Parameter
- IGNOREDELETES Parameter
NOTE : The parameters used in this article could be used either in Extract,Data pump or Replicat parameter file.
As a task you should try to use these parameters in Extract and Pump file as well and then check stats.
Prerequisites
This Parameters we can use after configure GG setup & DML replication between two oracle databases.
Check below article for Oracle to Oracle GoldenGate Unidirectional Replication
GoldenGate: Oracle to Oracle GoldenGate Unidirectional Replication
Update replicat process by adding ignoreupdates & ignoredeletes Parameters
GG2:
On target side connect to GGSCI
|
1 2 3 4 5 6 7 8 9 |
[oracle@gg2 ~]$ cd /u01/app/oracle/product/ogg_trg [oracle@gg2 ogg_trg]$ ./ggsci Oracle GoldenGate Command Interpreter for Oracle Version 19.1.0.0.0 OGGCORE_19.1.0.0.0_PLATFORMS_190508.1447_FBO Linux, x64, 64bit (optimized), Oracle 12c on May 9 2019 06:21:59 Operating system character set identified as UTF-8. Copyright (C) 1995, 2019, Oracle and/or its affiliates. All rights reserved. GGSCI (gg2.orcl.com) 1> |
Check replicat process status
|
1 2 3 4 5 |
GGSCI (gg2.orcl.com) 1> info all Program Status Group Lag at Chkpt Time Since Chkpt MANAGER RUNNING REPLICAT RUNNING REPINT 00:00:00 00:00:10 |
Now make connection to database
|
1 2 3 |
GGSCI (gg2.orcl.com) 2> dblogin useridalias ggadmin_trg Successfully logged into database. |
Update the parameter file for the Replicat group ‘repint’ and add these two parameters :
IGNOREUPDATES
IGNOREDELETES
|
1 2 3 4 5 6 7 8 9 10 11 |
GGSCI (gg2.orcl.com as ggadmin@orcl) 3> edit param repint REPLICAT REPINT SETENV(ORACLE_SID='ORCL') SETENV(ORACLE_HOME='/oraeng/app/oracle/product/12.1.0') useridalias ggadmin_trg DBOPTIONS INTEGRATEDPARAMS(parallelism 4) ASSUMETARGETDEFS IGNOREUPDATES IGNOREDELETES MAP ajay.DEPT,target ajay.DEPT; |
Restart replicat process as
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 |
GGSCI (gg2.orcl.com as ggadmin@orcl) 4> stop repint Sending STOP request to REPLICAT REPINT ... Request processed. GGSCI (gg2.orcl.com as ggadmin@orcl) 5> info all Program Status Group Lag at Chkpt Time Since Chkpt MANAGER RUNNING REPLICAT STOPPED REPINT 00:00:00 00:00:06 GGSCI (gg2.orcl.com as ggadmin@orcl) 6> start repint Sending START request to MANAGER ... REPLICAT REPINT starting GGSCI (gg2.orcl.com as ggadmin@orcl) 8> info all Program Status Group Lag at Chkpt Time Since Chkpt MANAGER RUNNING REPLICAT RUNNING REPINT 00:00:00 00:00:20 |
Check repint process info
|
1 2 3 4 5 6 7 8 9 |
GGSCI (gg2.orcl.com as ggadmin@orcl) 9> info repint REPLICAT REPINT Last Started 2019-08-02 19:20 Status RUNNING INTEGRATED Checkpoint Lag 00:00:00 (updated 00:00:06 ago) Process ID 25516 Log Read Checkpoint File /u01/app/oracle/product/ogg_trg/dirdat/rt000000005 2019-08-01 19:59:09.526343 RBA 6913 |
To check information related to any parameter in GOLDENGATE use below command:
info param <paramanme>
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 |
GGSCI (gg2.orcl.com as ggadmin@orcl) 11> info param ignoreupdates param name : getupdates opposite param name : ignoreupdates description : Include update records. argument : boolean default : true options : component(s): EXTRACT REPLICAT mode(s) : all Extract modes all Replicat modes platform(s) : all platforms versions : database(s) : all supported databases (on the supported platforms). status : current mandatory : false dynamic : false relations : none GGSCI (gg2.orcl.com as ggadmin@orcl) 12> info param ignoredeletes param name : getdeletes opposite param name : ignoredeletes description : Include delete records. argument : boolean default : true options : component(s): EXTRACT REPLICAT mode(s) : all Extract modes all Replicat modes platform(s) : all platforms versions : database(s) : all supported databases (on the supported platforms). status : current mandatory : false dynamic : false relations : none |
On SOURCE GG1 :
Insert records on DEPT table
|
1 2 3 4 5 6 7 8 9 10 11 12 |
SQL> select * from dept; DEPTNO DNAME LOC ---------- -------------- ------------- 10 ACCOUNTING NEW YORK 20 RESEARCH DALLAS 30 SALES CHICAGO 40 OPERATIONS BOSTON 50 MARKETING USA SQL> insert into dept values(60,'ACCOUNTS','CANADA'); 1 row created. SQL> commit; Commit complete. |
On Target GG2 :
|
1 2 3 4 5 6 7 8 9 |
SQL> select * from dept; DEPTNO DNAME LOC ---------- -------------- ------------- 10 ACCOUNTING NEW YORK 20 RESEARCH DALLAS 30 SALES CHICAGO 40 OPERATIONS BOSTON 50 MARKETING USA 60 ACCOUNTS CANADA |
On Source GG1 :
Update a row into DEPT table
|
1 2 3 4 |
SQL> update dept set loc='IND' where deptno=60; 1 row updated. SQL> commit; Commit complete. |
Check stats of EXTINT process

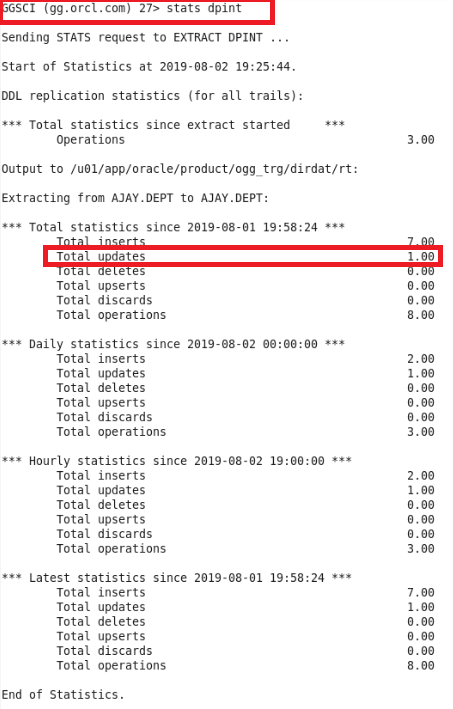

Check stats of DPINT process
On Target GG1 :
Check stats of REPINT process(REPLICAT)
Replicat process ignored a update transaction. Now we will try with DELETE option
On SOURCE GG1 :
DELETE a record from DEPT table
|
1 2 3 4 |
SQL> delete from dept where deptno=60; 1 row deleted. SQL> commit; Commit complete. |
Check stats of EXTINT process
Check stats of DPINT process
On TARGET GG2:
Check stats of REPLICAT process
Replicat process ignored a update & DELETE transactions.
NOTE : The parameters used in this guide could be used either in Extract,Data pump or replicat parameter file. As a task you should try to use these parameters in Extract and Pump file as well and then check stats.
